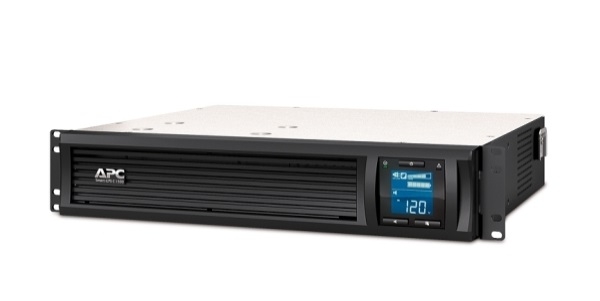

Bộ lưu điện UPS APC SMC1500I-2UC
- Công suất: 1500VA/900W.
- Điện thế ngõ vào/ra: 230V.
- Tần số ngõ vào: 50/60Hz ±3Hz.
- Công nghệ: Line Interactive.
- Dạng sóng: Sóng sine.
- Thời gian chuyển mạch: 6ms.
- Thời gian lưu điện: 24 phút (50% tải).
- Cổng kết nối: RJ-45 Serial, USB.
- Thời gian sạc: 3 giờ.
- Hỗ trợ màn hình LCD hiển thị thông tin trạng thái.
- Chiều cao rack: 2U.
Đặc tính kỹ thuật
Model |
SMC1500I-2UC |
Output |
Output power capacity |
900W / 1.5kVA |
Output Voltage Distortion |
Less than 5% |
Nominal Output Voltage |
230V |
Output Frequency |
50/60 Hz +/- 3 Hz Sync to mains |
Other output voltages |
220V, 240V |
Topology |
Line interactive |
Waveform |
Sine wave |
Transfer Time |
6 ms typical: 10 ms maximum |
Output Connections |
(4) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup) |
Input |
Nominal Input Voltage |
230V |
Input frequency |
50/60 Hz +/- 3 Hz Auto-sensing |
Input voltage range for main operations |
170 - 300 Adjustable, 180 - 287V |
Input Connections |
IEC 320 C14 |
Number of Power Cords |
1 |
Other Input Voltages |
220 V, 240 V |
Batteries |
Battery Type |
Lead-acid battery |
Typical recharge time |
3 hour(s) |
Replacement Battery |
APCRBC157 |
Expected Battery Life |
4 ~ 6 years |
RBC Quantity |
1 |
Battery Charge Power |
112W |
Communications & Management |
Interface Port(s) |
RJ-45 Serial, USB |
Control panel |
Multi-function LCD status and control console |
Audible Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering |
Surge energy rating |
459Joules |
Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
General |
Dimensions (DxWxH) |
86 x 432 x 477 mm |
Weight |
28.64kg |
Rack height |
2U |
Operating Temperature |
0 ~ 40°C |
Storage Temperature |
-15 ~ 45 °C |
Operating Relative Humidity |
0 - 95% (non-condensing) |
