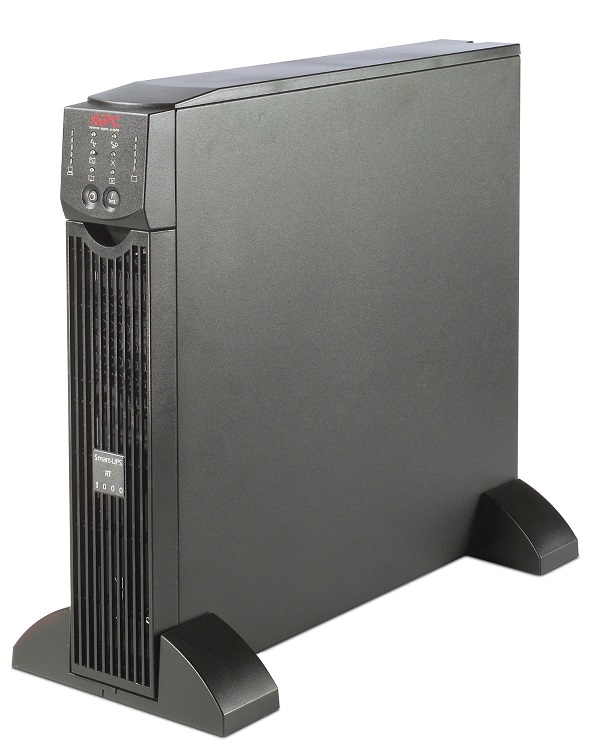

Bộ lưu điện UPS APC SURT1000XLI
- Công suất (Power Capacity): 700Watts/1.0kVA.
- Công nghệ (Technology): Double Conversion Online.
- Nguồn điện ngõ ra: 230VAC.
- Tần số ngõ ra: 50/60Hz +/-3Hz user adjustable +/-0.1.
- Tần số ngõ vào: 50/60 Hz +/-5Hz (auto sensing).
- Dạng sóng: Sóng Sine.
- Thời gian sạc: 3 giờ.
- Cổng kết nối: DB-9 RS-232, SmartSlot.
- Kích thước (Height x Width x Depth): 432x85x483 mm.
- Trọng lượng: 23 kg.
Đặc tính kỹ thuật
| Output |
| Max Configurable Power (Watts) |
700Watts / 1.0kVA |
| Output Voltage Note |
Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion |
Less than 3% |
| Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
| Other Output Voltages |
220, 240 |
| Load Crest Factor |
3 : 1 |
| Topology |
Double Conversion Online |
| Waveform type |
Sine wave |
| Bypass |
Built-in Bypass |
| Input |
| Input frequency |
50/60 Hz +/- 5 Hz (auto sensing) |
| Input voltage range for main operations |
160 - 280V |
| Input voltage adjustable range for mains operation |
100 - 280V |
| Number of Power Cords |
1 |
| Other Input Voltages |
220, 240 |
| Batteries & Runtime |
| Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Included Battery Modules |
1 |
| Typical recharge time |
3hour(s) |
| Expected Battery Life (years) |
3 - 5 |
| RBC Quantity |
1 |
| Extendable Run Time |
1 |
| Battery Volt-Amp-Hour Capacity |
Battery Volt-Amp-Hour Capacity |
| Extended Run Options |
APC-Smart-UPS-RT-1000VA-230V |
| Communications & Management |
| Interface Port(s) |
DB-9 RS-232, SmartSlot |
| Control panel |
LED status display with load and battery bar-graphs and On Line: On Battery: Replace Battery: Overload and Bypass Indicators |
| Audible Alarm |
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| Emergency Power Off (EPO) |
Optional |
| Available SmartSlot Interface Quantity |
1 |
| Surge Protection and Filtering |
| Surge energy rating |
420Joules |
| Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
| Physical |
| Dimension (Height x Width x Depth) |
432x85x483 mm |
| Net Weight |
23 kg |
| Color |
Black |
| Master Carton Units |
1 |
| Units per Pallet |
6.0 |
| Environmental |
| Operating Temperature |
0 - 40 °C |
| Operating Relative Humidity |
0 - 95 (non-condensing) % |
| Operating Elevation |
0-3000meters |
| Storage Temperature |
-20 - 50 °C |
| Storage Relative Humidity |
0 - 95 (non-condensing) % |
| Storage Elevation |
0-15000meters |
| Audible noise at 1 meter from surface of unit |
50.0dBA |
| Online thermal dissipation |
324.0BTU/hr |
| Protection Class |
IP 20 |
