| Model |

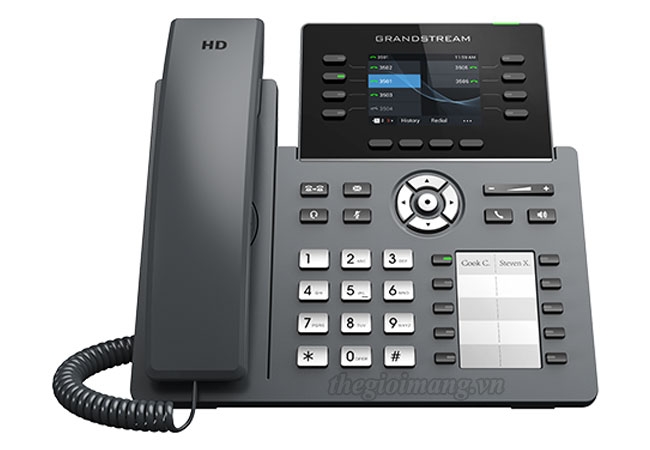

GRP2634 |
| Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Network Interfaces |
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Graphic Display |
2.8 inch (320x240) TFT color LCD |
| Wi-Fi |
Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz) |
| Bluetooth |
Yes, integrated |
| Feature Keys |
8 line keys with up to 4 SIP accounts, 10 MPK extension keys with paper slot, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 9 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL |
| Auxiliary Port |
RJ9 headset jack allowing EHS with Plantronics headsets, USB to support Grandstream’s GUV Series headsets and other USB headsets |
| Voice Codecs and Capabilities |
Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO) |
| Telephony Features |
Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 2000 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over |
| HD Audio |
Yes, HD handset and speakerphone with support for wideband audio. Dual Microphone. |
| Extension Module |
No |
| Base Stand |
Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately) |
| QoS |
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security |
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot. |
| Multi-language |
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more |
| Upgrade/Provisioning |
Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR- 069 or AES encrypted XML configuration file. |
| Power & Green Energy Efficiency |
Universal power adapter included:
Input:100-240V ; Output: +12V, 1A ;
Integrated Power-over-Ethernet (802.3af)
Max power consumption 9.5W (power adapter) or 10.8W (PoE) |
| Temperature and Humidity |
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing |
| Package Content |
GRP2634 phone, handset with cord, phone stand, 12V power adapter, network cable, Quick Installation Guide, GPL license |
| Physical |
Dimension: 220mmx 210mmx 82mm
Unit Weight: 880g ; Package Weight:1260g |
| GRP2624 Compliance |
FCC: Part 15 (CFR 47) Class B
CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1 |
