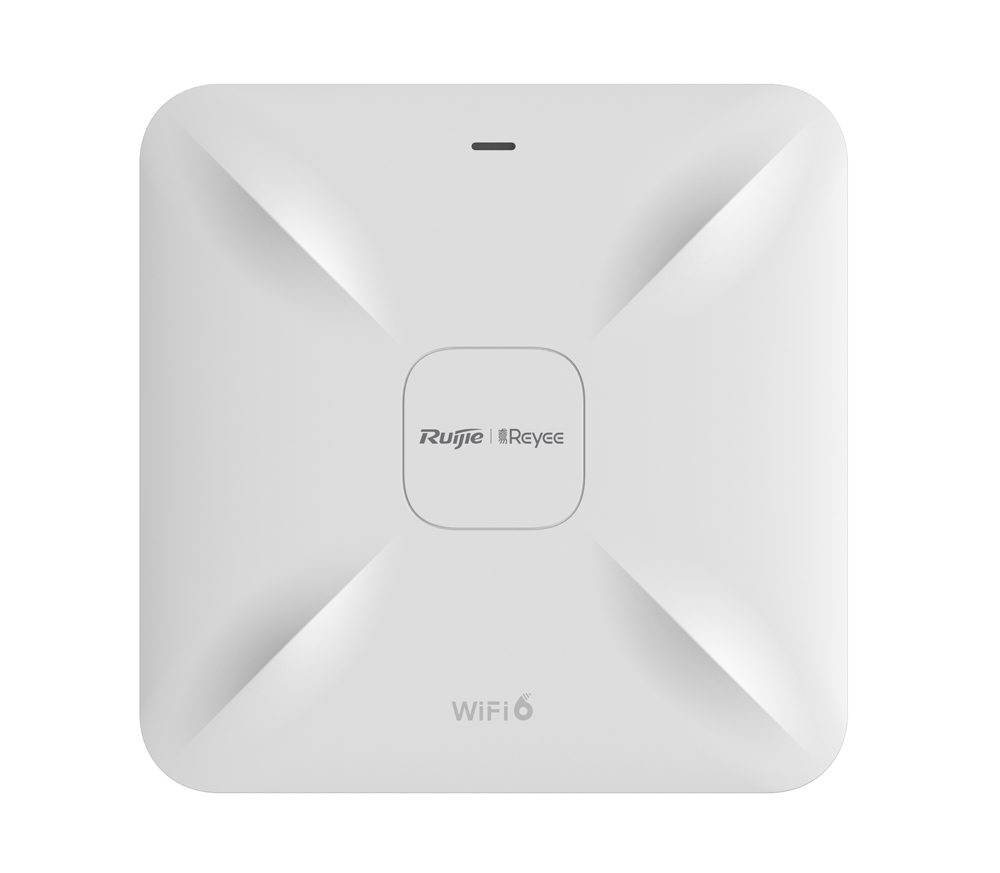

Thiết bị thu phát sóng wifi Reyee (by Ruijie) RG-RAP2260(G)

Thiết bị thu phát sóng wifi Reyee (by Ruijie) RG-RAP2260(G)

Mã sản phẩm: (Đang cập nhật...) icttech.com.vn
Thương hiệu: Reyee (by Ruijie)
Tình trạng: Còn hàng

Wi-Fi 6 dual-band Gigabit ceiling mount AP, dual Gigabit LAN uplink ports, built-in antennas, dual-band 2.4GHz/5GHz, 802.11ax, 802.11ac wave2/wave1, up to 1775Mbps access rate per AP; support AP and routing mode, Layer 3 roaming, Reyee unified networking and Ruijie Cloud app management; Support PoE and local power supply (PoE module and DC adapter are sold separately)

Liên hệ

Chúng tôi cam kết

TRỢ GIÚP TƯ VẤN BÁN HÀNG

Hỗ trợ trực tuyến

KDPP Mr Giang:

KDPP Ms Thảo:

Hỗ trợ kỹ thuật:

Mô tả

Ruijie Reyee RG-RAP2260(G) is a high-performance entry Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af/at PoE and 12V DC local power supply. The dual LAN ports design facilitates the expansion of third-party devices to meet the needs of more networking scenarios. Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocol, RG-RAP2260(G) supports MU-MIMO dual-stream technology and offers built-i n omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 574Mbps at 2.4GHz, 1201Mbps at 5GHz and up to 1775Mbps per AP. Its coverage of over 20 meters makes it an ideal choice for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc.

The industrial product design, iconic edges and breathing light makes the product more recognizable. Adopting the non-directional installation design, the new mounting kits support various installation methods including on desktop, ceiling, wall, and pole, which improves the versatility of installation, simplifies the installation steps, reduces the installation difficulty, and greatly improves the installation experience of the device.

RG-RAP2260 Series supports Ruijie’s self-developed smart networking feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction.

Users can perform comprehensive local management or remote management of the equipment in the entire network via the Ruijie Cloud app, equipment EWEB management, Ruijie Cloud platform, etc. Users can also share the network to third party for network hosting and collaborative management, thereby achieving simpler, easier to use, more secure and convenient enterprise network operation and maintenance.

Highlight

● 1024-QAM High-speed Access

The RG-RAP2260(G) adopts the dual-radio dual-band design and 2G+5G is recommended. With the next-generation 802.11ax for 5G, the maximum access rate can reach 1.2Gbps. If dual-radio is enabled concurrently, the high-speed Wi-Fi can reach 1.8Gbps, offering the true high-speed experience.

● OFDMA High-density User Access

The RG-RAP2260(G) supports OFDMA of 802.11ax, which divides the WLAN channel into a plurality of narrower subchannels, with each user occupying one or more subchannels. By scheduling multiple users to receive and send packets concurrently via the AP, user competition and back-off can be reduced, thereby reducing network latency and improving network efficiency. In a high-density deployment environment, the average rate per user is increased to four times of 802.11ac.

● Bi-Directional MU-MIMO

Compared with the previous Wi-Fi 5 (802.11ac) with only downlink MU-MIMO support, Wi-Fi 6 supports both uplink and downlink MU-MIMO(multi-user, multiple-input and multiple-output). Therefore, Ruijie RG-RAP2260 Series access points can connect clients simultaneously, significantly improving the wireless performance and experience.

● TWT(Target Wake Time)

Target wake time (TWT) is used to help minimize contention between clients and reduce the amount of time a client in power save mode to be awake. Energy consumption is reduced by up to 70% of the battery consumption, thereby improving battery life.

● Spatial Reuse with BSS Color

The RG-RAP2260(G) supports spatial reuse with basic service set (BSS) color of 802.11ax to identify the BSSs of different WLANs in the network by different coloring (BSS color), and further divide them into internal and external BSS. Different packet receiving and sending thresholds can be maintained. When receiving packets, BSS coloring is used to quickly identify the packet of the external BSS. If the signal strength is lower than the receiving threshold of the external BSS, the packet will be ignored. The transmission of the internal BSS packet will be not affected. This technology can implement channel reuse in a high-density scenario, greatly reducing the impact of co-channel interference for the actual network deployment.

● Auto-provisioning via Self-Organizing Network

• Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;

● Lifetime free Ruijie Cloud management

• Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;

● More LAN Port:

• Two LAN interfaces are provided to support more services;

● Seamless layer 3 roaming

• Industrial Design: Robust casing, Provide better strength and safety for products;

Model

RG-RAP2260(G)

Hardware specifications

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n/ax :2.4G ~ 2.4835GHz

802.11a/n/ac/ax : 5G:5.150~5.350GHz,5.725~5.850GHz (country specific)

Antenna

Internal antennas(2.4G: 3dBi,5G: 3dBi)

Spatial Streams

2.4G 2x2MIMO  5G 2x2MIMO

Max Throughput

Up to 574Mbps at 2.4G

Up to 1201Mbps at 5G

1.775Gbp per AP

Modulation

OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16QAM@24Mbps,64QAM@48/54Mbps  DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps

MIMO-OFDM:BPSK,QPSK,16QAM ,64QAM,256QAM and1024QAM

OFDMA

Receive Sensitivity

11b:-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)

11a/g:-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)  11n:-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)

11ac:20MHz:-88dBm(MCS0), -63dBm(MCS9)

11ac:40MHz:-85dBm(MCS0), -60dBm(MCS9)

11ac:80MHz:-85dBm(MCS0), -60dBm(MCS9)

11ax:80MHz:-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11)

Maximum Transmit Power

5.725~5.850GHz:≤20dBm (EIRP)

5.150~5.250GHz:≤20dBm (EIRP)

2.4~2.4835GHz:≤20dBm (EIRP)

Adjustable Power

1dBm

Dimensions

194mm×194mm×35mm (excluding mounting kits)

Weight

0.56kg (excluding mounting kits)

Service Ports

2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE

Management Port

NA

LED Indicator

Single indicator (green light)

Power Supply

Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)

802.3af/802.3at PoE

Power Consumption

≤ 15.3W

Environment

Operating temperature: 0°C~40°C

Storage temperature: -40°C~70°C

Operating humidity: 5%~95%(non-condensing)

Storage humidity: 5%~95%(non-condensing)

Installation

Ceiling/wall-mountable

Safety Standard

GB4943, IEC 62368-1

EMC Standard

GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035

Vibration Standard

IEC61373

Radio Standard

EN300 328, EN301 893

MTBF

>400000H

Software Features



Operating Mode

AP mode and routing mode

WLAN

Maximum number of clients: 512

Recommended number of clients: 100

Up to 8 SSIDs

Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Roaming

Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication

Support static blacklist and whitelist

Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform

Platform management features

Automatic RF adjustment via the platform

Unified configuration via the platform

Unified monitoring via the platform
