| Model |
UCM6300A |
| Network Interfaces |
Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+ |
| NAT Router |
Yes (supports router mode and switch mode) |
| Peripheral Ports |
1xUSB 3.0, 1xSD card interface |

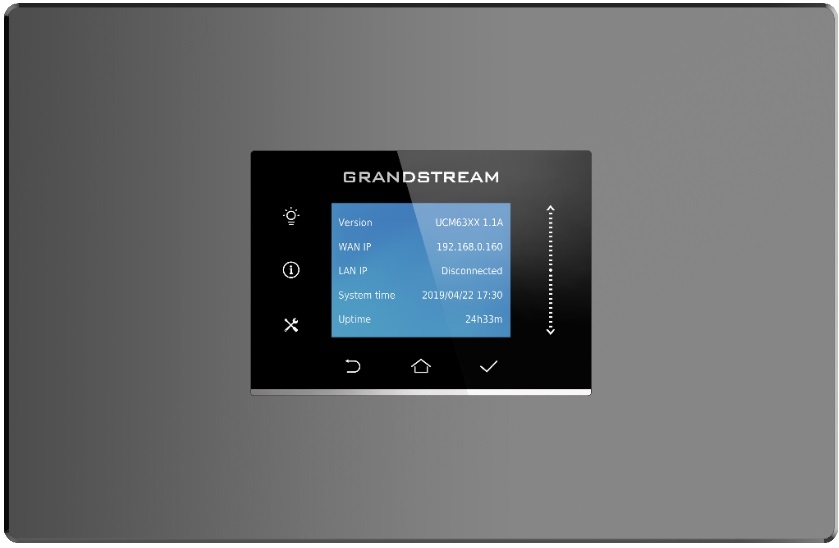

| LCD Display |
320x240 color LCD with touch screen for Shortcut Keys and Scroll Bar |
| Reset Switch |
Yes, long press for factory reset and short press for reboot |
| Voice-over-Packet Capabilities |
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0, jitter resilience up to 50% audio packet loss |
| Voice and Fax Codecs |
Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 |
| QoS |
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| API |
Full API available for third-party platform and application integration |
| Telephony Operating System |
Based on Asterisk version 16 |
| DTMF Methods |
In-band audio, RFC4733, and SIP INFO |
| Provisioning Protocol & Plug-and-Play |
Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via
ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
| Network Protocols |
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN® |
| Disconnect Methods |
Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect |
| Media Encryption |
SRTP, TLS, HTTPS, SSH, 802.1X |
| Universal Power Supply |
Input: 100 ~ 240VAC, 50/60Hz; Output: DC 12V, 1.5A |
| Dimensions |
270mm(L) x 175mm(W) x 36mm(H) |
| Weight |
Unit Weight: 705g;
Package Weight: 1131g |
| Temperature & Humidity |
Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing)
Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing) |
| Mounting |
Wall mount & Desktop |
| Multi-Language Support |
-Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish
-Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese,
Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands
-Customizable language pack to support any other languages |
| Caller ID |
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT |
| Polarity Reversal/Wink |
Yes, with enable/disable option upon call establishment and termination |
| Call Center |
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ workload, in-queue announcement |
| Customizable Auto Attendant |
Up to 5 layers of IVR (Interactive Voice Response) in multiple languages |
| Maximum Call Capacity |
Users: 250
Concurrent calls (G.711): 50
Max concurrent SRTP calls (G.711): 50 |
| Maximum Attendees of Conference Bridges |
3 meeting rooms and up to 50 parties |
| Wave App |
Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers) and mobile (Android & iOS), allows users to join UCM-hosted meetings, communicate with other users/solutions and make/receive calls using SIP accounts registered to a UCM6300 Audio series IP PBX |
| Call Features |
Call park, call forward, call transfer, call waiting, caller ID, call record call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice meeting, eventlist, feature codes, busy camp-on/ call completion, voice control |
| Firmware Upgrade |
Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products |
| Compliance |
FCC: Part 15 (CFR 47) Class B, Part 68
CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368.1, ES 203 021, ITU-T K.21
IC: ICES-003, CS-03 Part I Issue 9
RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2
Power adapter: UL 60950-1 or UL 62368-1 |
