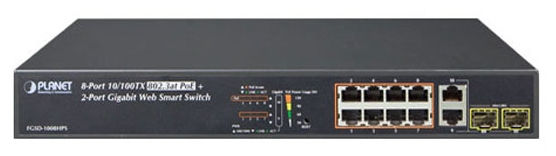

| Hardware Specifications |
| 10/100Mbps Copper Ports |
8 10/100BASE-TX RJ45 Auto-MDI/MDI-X ports |
| Gigabit Copper Ports |
2 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots |
2 1000BASE-X SFP interfaces, shared with Port-9 to Port-10 |
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
5.6Gbps / non-blocking |
| Throughput |
4.16Mpps@64Bytes |
| Address Table |
4K entries, automatic source address learning and ageing |
| Shared Data Buffer |
2.75Mb embedded memory for packet buffers |
| Flow Control |
IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex |
| Maximum Transmit Unit |
1536 Bytes |
| Reset Button |
< 5 sec: System reboot |
| > 5 sec: Factory default |
| Dimensions |
330 x 155 x 43.5 mm, 1U height |
| Weight |
1.5kg |
| LED |
System: |
| Power (Green) |
| 10/100BASE-TX RJ45 Interfaces (Port1 to Port8): |
| 10/100Mbps LNK/ACT (Green) |
| PoE In-Use (Orange) |
| 10/100/1000BASE-T RJ45 / SFP Interfaces (Port 9 to Port10): |
| LNK/ACT (Green) |
| 100/1000 (Green) |
| PoE Usage |
| 30W, 60W, 90W, 120W (Orange) |
| Cable |
Twisted-Pair |
| 10BASE-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters |
| 100BASE-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters |
| 1000BASE-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters |
| Fiber-Optic Cable |
| 1000BASE-SX : |
| 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module) |
| 1000BASE-LX : |
| 9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/60/70/120 kilometers (varying on SFP module) |
| Power Requirements |
100~240V AC, 50/60Hz, 2A |
| Power Consumption |
Max. 150 watts / 511BTU |
| ESD Protection |
Contact Discharge 8KV DC |
| Air Discharge 8KV DC |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af / 802.3at PoE / PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
Per Port 52V DC, Max. 30.8 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
125 watts (max.) |
| PoE Ability |
PD @ 7 watts 8 units |
| PD @ 15.4 watts 8 units |
| PD @ 30.8 watts 4 units |
| Layer 2 Functions |
| Port Management |
Port disable / enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
| Flow Control disable / enable |
| Bandwidth Control / Broadcast Storm Control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status, auto negotiation status |
| Port Mirroring |
TX / RX / Both |
| Many-to-1 monitor |
| VLAN |
802.1Q tagged-based VLAN, up to 30 VLAN groups, out of 4094 VLAN IDs |
| Port-based VLAN, up to 10 VLAN groups |
| MTU VLAN |
| QoS |
Allow to assign low / high priority on each port |
| First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy |
| Security |
Control MAC address binding |
| TCP & UDP Filter |
| Spanning Tree Protocol |
STP, IEEE 802.1D Spanning Tree Protocol |
| RSTP, IEEE 802.1w Rapid Spanning Tree Protocol |
| Link Aggregation |
2 groups of 4-Port 10/100BASE-TX trunk supported |
| 1 group of 2-Port 10/100/1000BASE-T trunk supported |
| DHCP Relay |
DHCP Relay Agent / DHCP Relay Server |
| PoE Setting |
PoE Status / PoE Port Setting / PoE Sequential |
| Configuration Back / Restore |
Configuration backup / restore through Web interface |
| IGMP Snooping |
IGMP (v1 / v2) Snooping, up to 32 multicast groups |
| Management Functions |
| Basic Management Interfaces |
Web browser, SNMP v1 / v2c |
| Standards Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet |
| IEEE 802.3ab Gigabit Ethernet |
| IEEE 802.3z Gigabit Ethernet |
| IEEE 802.3x Full-duplex flow control |
| IEEE 802.1Q VLAN |
| IEEE 802.1p QoS |
| IEEE 802.1D Spanning Tree Protocol |
| IEEE 802.1w Rapid Spanning Tree Protocol |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
